Type 482

~ 67 mm

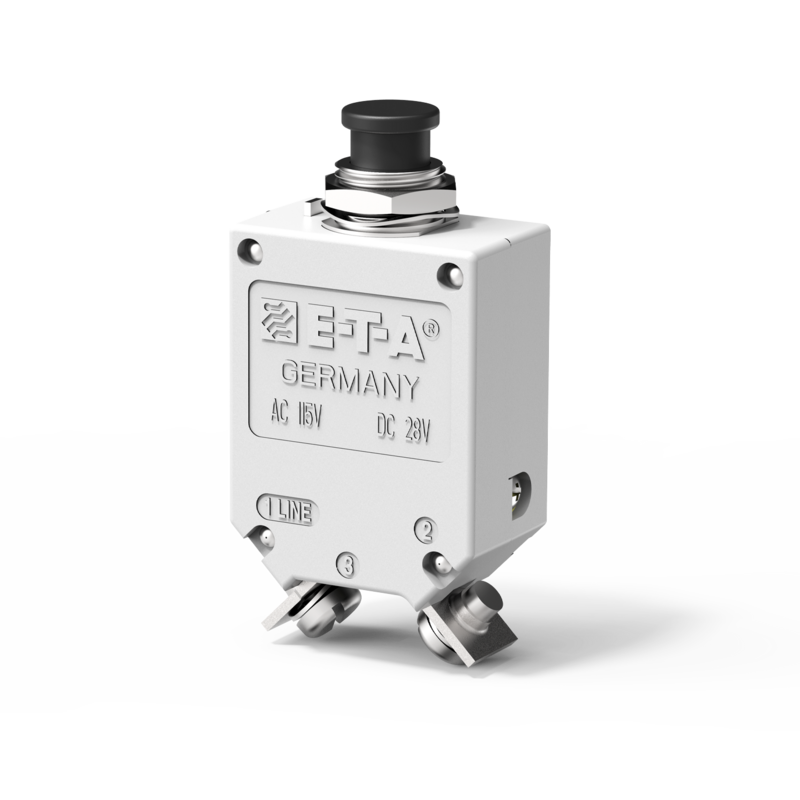

Typ 482 von E-T-A: Einpoliger, thermischer Schutzschalter mit Gewindehalsbefestigung und Druck/Zug-Betätigung.

Description

Single pole compact high performance thermal circuit breaker with tease-free, trip-free, snap action mechanism and push/pull on/off manual actuation (M-type TO CBE to EN 60934). An indicator band on the push button clearly shows the tripped/off position. Threadneck panel mounted in tracked vehicle and aircraft/general purpose versions, with optional auxiliary contacts.

Technical Data

Voltage rating
  • AC 115 V (400 Hz)
  • DC 28 V
  • AC 230 V (50/60 Hz) to special order
Current ratings from 0.1 A until 50 A
Number of poles single pole
Mounting method socket
threadneck
Terminal design blade terminals
screw terminals
Actuation manual release
push button
Auxiliary contacts with auxiliary contacts
without auxiliary contacts
Water splash protection with water splash protection
without water splash protection
Illumination without illumination
Typical life 10,000 operations mechanical

5,000 operations at IN
Interrupting capacity Icn 0.1...2.5 A: 15 x IN

3...3.5 A: 250 A DC / 150 A AC

4...7 A: 500 A

7.5...50 A: 6,000 A DC / 1,000 A AC

35...50 A with auxiliary contact:

3,000 A DC / 1,000 A AC
Certificates VG 95345 part 21, QPL Canada, UL, CSA

Accessories

Order number Description
X20080103

splash cover black with O-ring

X20080108

splash cover transparent with O-ring

X20080201

splash cover black with O-ring,

nickel plated nut

X20080202

splash cover black with O-ring,

matt black finish nut

X20080301

actuator extension

Y30700401-05

identification collar

Y30700501

lock out ring

Applications

  • Aerospace
  • Automation
  • Automobiles
  • Commercial Vehicles
  • Minus DC 28 V
  • Rail vehicles
  • Telecom & Datacom
  • Watercraft & Vehicles
